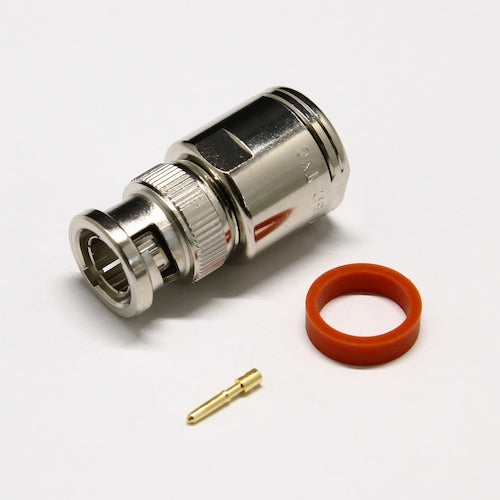

TYC BNC 75Ω Connector Straight Plug BNCP-7 75OHM 1 pc

Catalog number: BNCP-7 75OHM Features: ● Straight plug of BNC 75Ω connector. Applications: ● BNC 75Ω type straight plug compatible with 7C-2V, 7C-FB, S-7C-FB cables. ● The main body is a tightening type, and the robustness of the cable connection is high. ● The center contact is a solder type. Specifications: Connector type: BNC 75Ω connector Installation method: Center: soldering/External: clamping Compatible wires: 7C-2V/7C-FB/S-7C-FB Characteristic impedance: 75Ω Rated voltage AC: AC 500V Operating frequency range: 6GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 4GHz), 1.3 or less (4GHz to 6GHz) Operating temperature range: -40 to +85°C Material/Finish: Center contact: Brass/gold plating/soldering External contact: Brass/nickel plating/clamping
