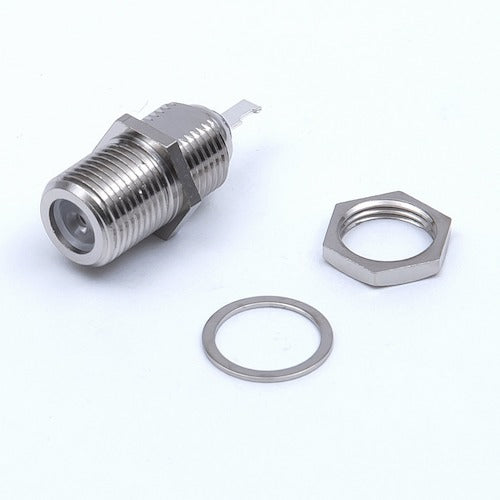

TYC F connector receptacle FRI 1 piece

Catalog number: FRI Features: ● F connector receptacle. Applications: ● Bulkhead type F type receptacle. ● The body is made of nickel-plated brass, and the center contact is made of silver-plated phosphor bronze. ● The terminal shape is solder type. Specifications: ● Connector shape: F connector ● Characteristic impedance: 75Ω Rated voltage AC: AC 150V Operating frequency range: Insulation resistance: 500MΩ or more at DC 500V Withstand voltage: AC 500V for 1 minute Contact resistance: 5mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Terminal shape: Solder Material/Finish: ● Center contact: Phosphor bronze/silver plating External contact: Brass/nickel plating
