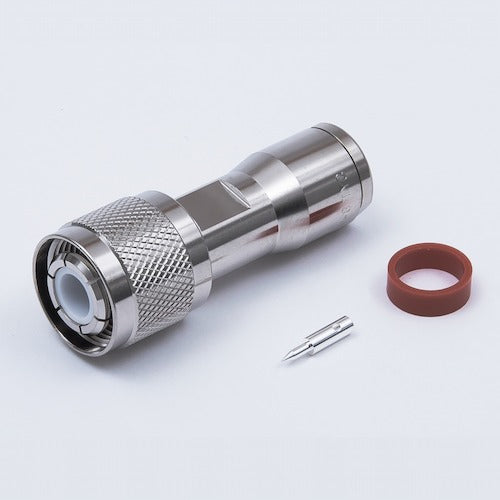

TYC HN Connector Straight Plug HN-P-8 1 pc

Catalog number: HN-P-8 Features: ● Straight plug of HN connector. Applications: ● HN straight plug compatible with 8D-2V and EM-8D-2E cables. ● The center contact is solder type, and the body is clamp type. ● Connector compatible with high voltages up to 1.5kV and frequencies up to 2GHz. Specifications: ● Connector shape: HN connector ● Installation method: Center: solder / External: clamp ● Compatible wire: 8D-2V / EM-8D-2E ● Characteristic impedance: 50Ω Rated voltage AC: AC 1500V Operating frequency range: 2000MHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 5000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: Material / Finish: ● Center contact: Brass / silver plating / soldering External contact: Brass / nickel plating / clamping
