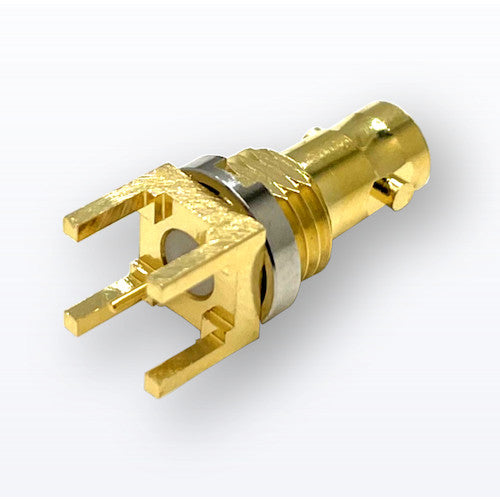

TYC H/BNC Connector Receptacle for Printed Circuit Boards H.BNC-R-PC 1 pc

Catalog number: H.BNC-R-PC Features: ● H-BNC connector receptacle for printed circuit boards. Applications: ● 12G-SDI compatible H-BNC type receptacle for printed circuit boards. ● Body is gold plated brass. ● Straight type. ● Mating part is 75Ω specification. ● Compatible with HD-BNC 75Ω type. ● Compatible with panel thickness of 1.0 to 3.0 mm. Specifications: Connector type: H-BNC connector; Characteristic impedance: 75Ω; Rated voltage AC: AC 170V; Operating frequency range: 12GHz; Insulation resistance: 10,000MΩ or more at DC 500V; Withstand voltage: AC 500V for 1 minute; Contact resistance: 10mΩ or less; Voltage standing wave ratio: 15dB or more (return loss) from DC to 12GHz; Operating temperature range: -40 to +85°C; Material/Finish: Center contact: Beryllium copper/gold plated; Outer contact: Brass/gold plated
