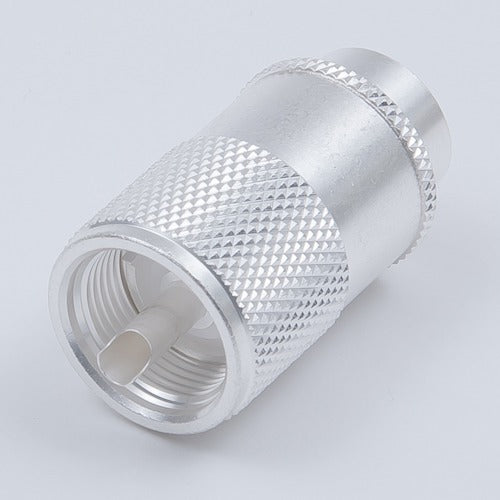

TYC M connector straight plug MP-10DFB 1 piece

Catalog number: MP-10DFB Features: ● Straight plug of M connector. Applications: ● M type straight plug compatible with 10D-FB, 10D-FV, 10D-FB-LITE cables. ● Often used in the frequency band below 200MHz. ● Both the center contact and the body are solder type. Specifications: ● Connector shape: M connector ● Installation method: Center: solder / External: solder ● Compatible wire: 10D-FB / 10D-FV / 10D-FB-LITE ● Characteristic impedance: Mismatched Rated voltage AC: AC 500V Operating frequency range: 200MHz Insulation resistance: 100MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85℃ Material / Finish: ● Center contact: Brass / silver plating / soldering External contact: Brass / silver plating / soldering
