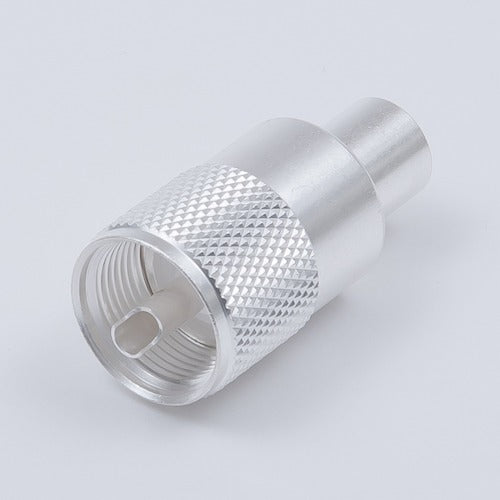

TYC M connector straight plug MP-5 1 piece

Catalog number: MP-5 Features: ● Straight plug of M connector. Applications: ● M-type straight plug compatible with 5D-2V, 5D-FB, 5C-2V, S-5C-FB, 5D-FB-LITE cables, etc. ● Often used in frequency bands below 200 MHz. ● Both the center contact and the main body are solder types. Specifications: ● Connector shape: M connector ● Installation method: Center: solder / External: solder ● Compatible wires: 5D-2V 5D-FB 5C-2V 5C-FB S-5C-FB EM-5D-2E EM-5C-2E EM-5C-FB EM-S-5C-FB 5D-FB-LITE ● Characteristic impedance: Mismatched Rated voltage AC: AC 500V Operating frequency range: 200MHz Insulation resistance: 100MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Brass/silver plated/soldered External contact: Brass/silver plated/soldered
