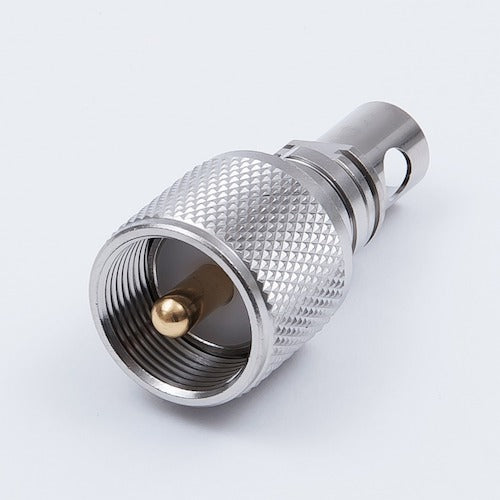

TYC M connector straight plug MP-5X 1 piece

Catalog number: MP-5X Features: ● Straight plug of M connector. Applications: ● M-type straight plug compatible with 5D-2V, 5D-FB, 5D-SFA, EM-5D-2E, 5D-FB-LITE, 5D-SFA-LITE cables. ● Often used in frequency bands below 200MHz. ● Both the center contact and the main body are solder types. ● Detachable solder type, shell can be removed. Specifications: ● Connector shape: M connector ● Installation method: Center: solder / External: solder ● Compatible wires: 5D-2V 5D-FB 5D-SFA EM-5D-2E 5D-FB-LITE 5D-SFA-LITE ● Characteristic impedance: Mismatched Rated voltage AC: AC 500V Operating frequency range: 200MHz Insulation resistance: 100MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Brass/gold plated/soldered External contact: Brass/nickel plated/soldered
