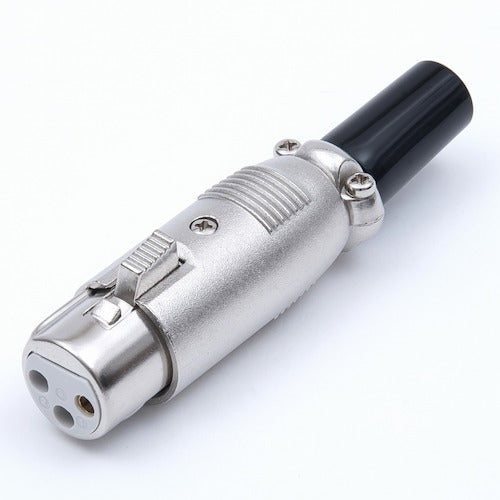

TYC MC connector straight jack MC-3J 1 piece

Catalog number: MC-3J Features: ● MC connector straight jack. Applications: ● MC straight jack. ● Contact is 3-pin type, wired by soldering. ● The body is fixed with screws. ● Characteristic impedance is not specified, so it is used in a wide range of applications. ● Body is zinc die-cast with nickel plating. Specifications: ● Connector shape: MC connector ● Characteristic impedance: Mismatched Rated voltage AC: AC 125V Operating frequency range: Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 5mΩ or less Voltage standing wave ratio: Operating temperature range: Material/Finish: ● Center contact: Brass/gold plating External contact: Zinc die-cast/nickel plating
