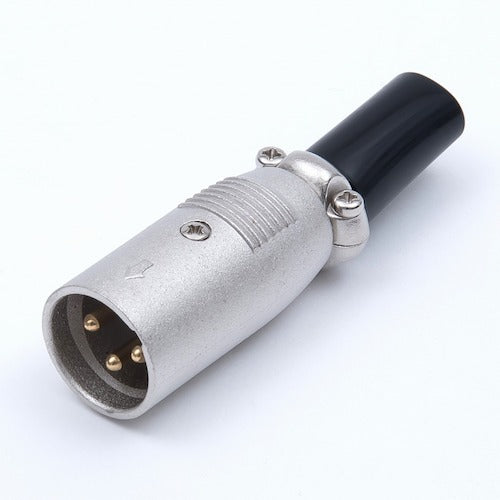

TYC MC connector straight plug MC-3P 1 piece

Catalog number: MC-3P Features: ● Straight plug of MC connector. Applications: ● MC straight plug. ● Contact is 3-pin type, and wires are connected by soldering. ● The main body is fixed with screws. ● Characteristic impedance is not specified, so it is used in a wide range of applications. ● The main body is zinc die-cast with nickel plating. Specifications: ● Connector shape: MC connector ● Characteristic impedance: Mismatched Rated voltage AC: AC 125V Operating frequency range: Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 5mΩ or less Voltage standing wave ratio: Operating temperature range: Material/Finish: ● Center contact: Brass/gold plating External contact: Zinc die-cast/nickel plating
