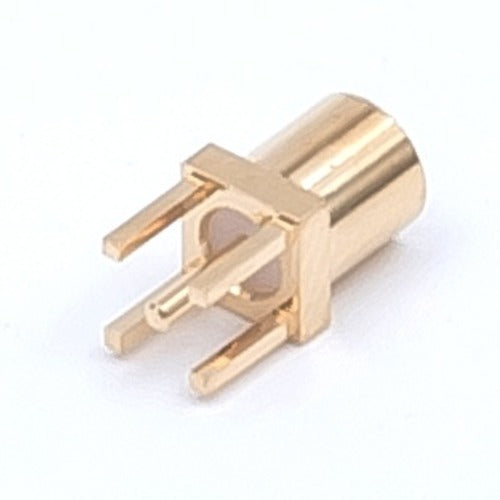

TYC MMCX Connector Receptacle for Printed Circuit Boards MMCX-R-PCB 50OHM 1 Piece

Catalog number: MMCX-R-PCB 50OHM Features: ● MMCX connector receptacle for printed circuit boards. Applications: ● MMCX type receptacle for printed circuit boards. ● Body is gold plated brass. ● Shape is straight type. ● For detailed dimensions, please refer to the drawing. Specifications: ● Connector shape: MMCX connector ● Characteristic impedance: 50Ω Rated voltage AC: Operating frequency range: 6GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: DC 500V for 1 minute Contact resistance: 5mΩ or less Voltage standing wave ratio: 1.2 or less (0 to 6GHz) Operating temperature range: -40 to +85℃ Material/Finish: ● Center contact: Beryllium copper/gold plated Outer contact: Brass/gold plated
