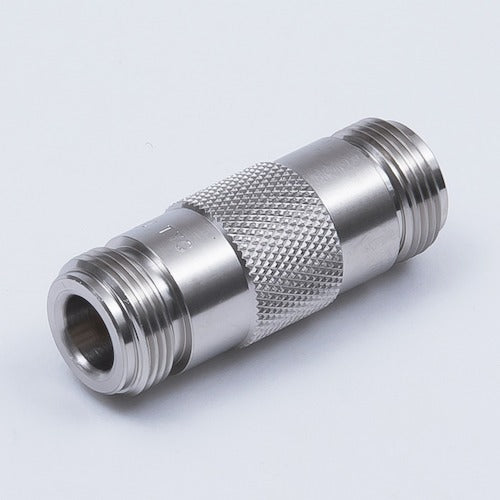

TYC N connector adapter NA-JJ 1 piece

Catalog number: NA-JJ Features: ● N connector adapter. Applications: ● N-type relay adapter. ● Body is nickel-plated brass. ● Jack-jack type. ● Can also be used to convert the mating part from plug to jack. ● Not compatible with 75Ω specifications. ● Similar name: NJ-NJ. Specifications: ● Connector shape: N connector ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 4GHz) Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Phosphor bronze/gold plating External contact: Brass/nickel plating
