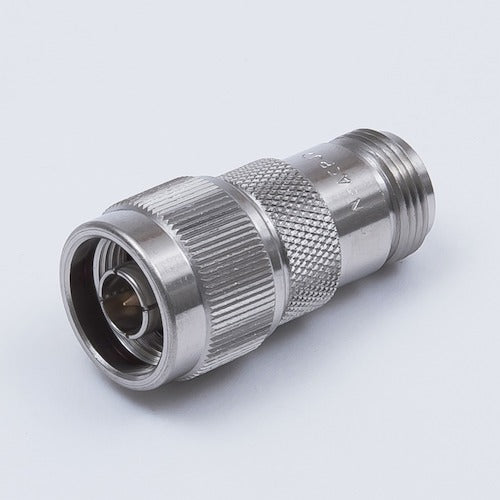

TYC N connector adapter NP-NJ 1 piece

Catalog number: NP-NJ Features: ● N connector adapter. Applications: ● N-type relay adapter. ● Body is nickel-plated brass. ● Plug-jack type. ● When used for applications requiring frequent insertion and removal, such as inspection and measurement, this product may be attached to simplify replacement due to deterioration. ● Not compatible with 75Ω specifications. Specifications: ● Connector shape: N connector ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Phosphor bronze/gold plating External contact: Brass/nickel plating
