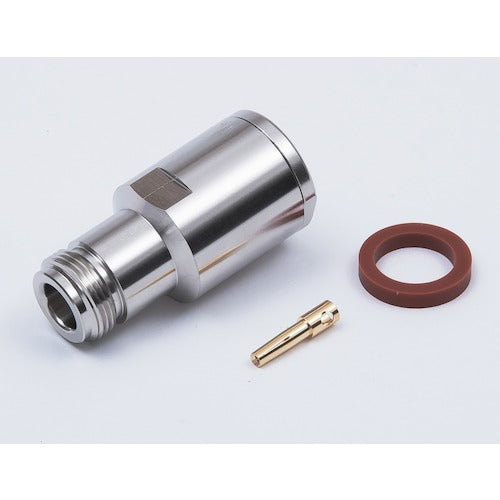

TYC N connector straight jack NJ-10DFB 1 piece

Catalog number: NJ-10DFB Features: ● Straight jack for N connector. Applications: ● N-type straight jack compatible with 10D-FB and 10D-FB-LITE cables. ● The main body is a clamping type, which increases the robustness of the connection. ● The center contact is a soldering type. Specifications: ● Connector shape: N connector ● Installation method: Center: solder/External: clamping ● Compatible wire: 10D-FB/10D-FB-LITE ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 10GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85℃ Material/Finish: ● Center contact: Phosphor bronze/gold plating/soldering External contact: Brass/nickel plating/clamping
