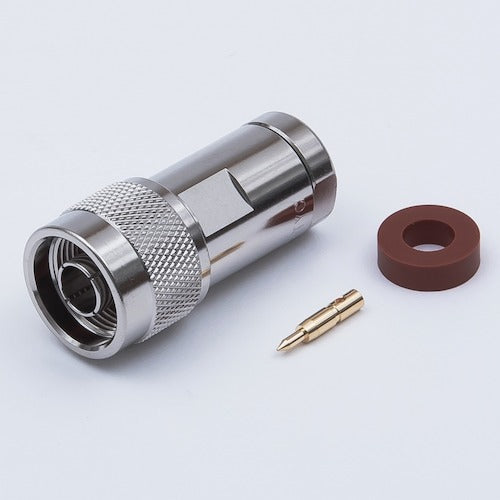

TYC N connector straight plug NP-5D 1 piece

Catalog number: NP-5D Features: ● Straight plug for N connector. Applications: ● N-type straight plug compatible with 5D-2V, 5D-2V・S, 5C-FB, S-5C-FB, 5C-FV cables, etc. ● The main body is a tightening type, which increases the robustness of the connection. ● The center contact is a solder type. ● Similar name: NP-5. Specifications: ● Connector shape: N connector ● Installation method: Center: Crimping / External: Clamping ● Compatible wires: 5D-2V/5D-2V・S/EM-5D-2E/5C-FB/S-5C-FB/5C-FV/EM-5C-FB/EM-S-5C-FB ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 5GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 5GHz) Operating temperature range: -40 to +85℃ Material/Finish: ● Center contact: Brass/gold plated/soldered External contact: Brass/nickel plated/clamping
