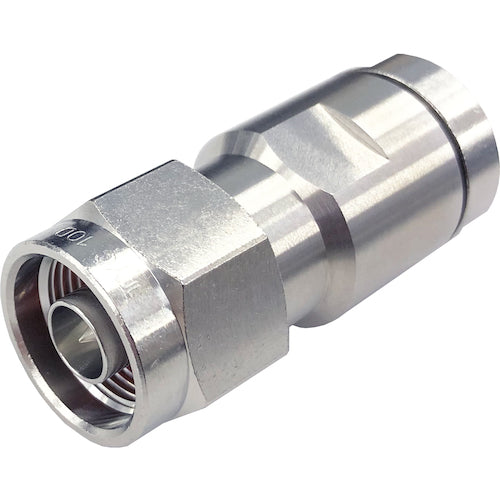

TYC N connector straight plug NPT-10DFX 1 piece

Catalog number: NPT-10DFX Features: ● Straight plug of N connector. Applications: ● N-type straight plug for corrugated cable. ● Compatible with 10D-WFLEX cable. ● IPX7 waterproof specification. ● Connector for corrugated cable with particularly low loss, widely used in mobile communication base stations, etc. Specifications: ● Connector shape: N connector ● Installation method: External: Clamping ● Applicable wire: 10D-WFLEX ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 5GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 5GHz) Operating temperature range: -40 to +85℃ Material/Finish: ● Center contact: Phosphor bronze/silver External contact: Brass/ternary plating/clamping
