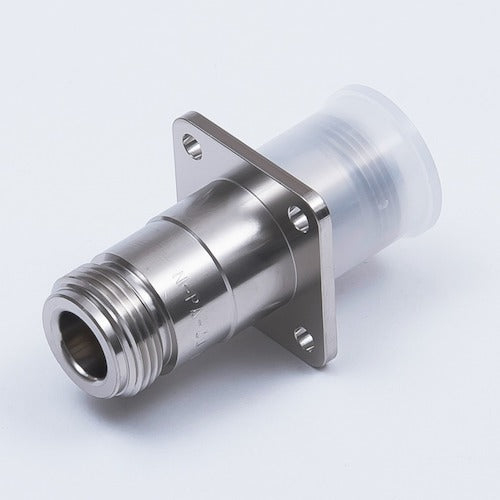

TYC N-connector panel adapter N-PA-JJ 1 piece

Catalog number: N-PA-JJ Features: ●Panel adapter for N connector. Applications: ●Panel mounting type adapter for N-type relay. ●Body is nickel-plated brass. ●Jack-jack type. ●Not compatible with 75Ω specifications. Specifications: ●Connector shape: N connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 10GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 6GHz) Operating temperature range: -40 to +85°C Material/Finish: ●Center contact: Phosphor bronze/gold plating Outer contact: Brass/nickel plating
