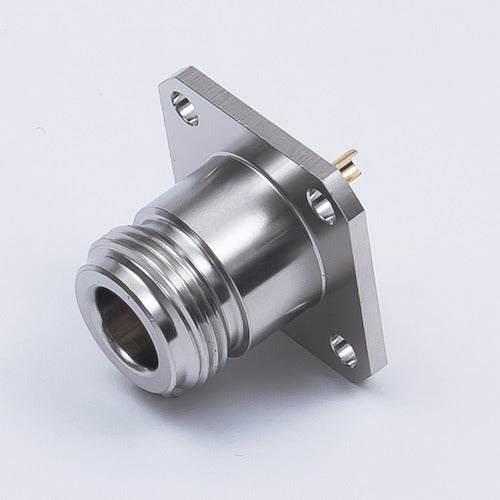

TYC N connector receptacle NR 1 piece

Catalog number: NR Features: ● N connector receptacle. Applications: ● Panel mounting type N type receptacle. ● Body is nickel plated brass. ● Terminal shape is solder type. Specifications: ● Connector shape: N connector ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 10GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Terminal shape: Solder Material/Finish: ● Center contact: Phosphor bronze/gold plated Outer contact: Brass/nickel plated
