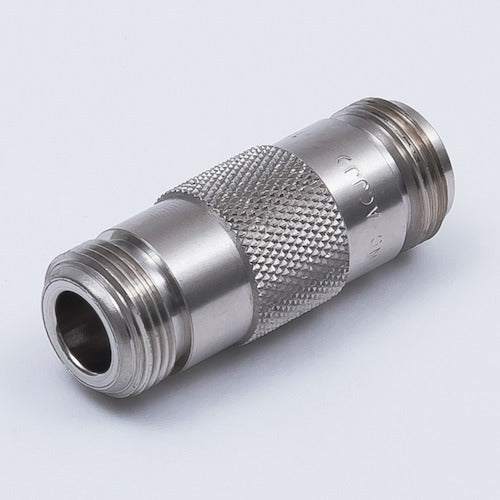

TYC N75Ω Connector Adapter N-CA-JJ 1 piece

Catalog number: N-CA-JJ Features: ● N75Ω connector adapter. Applications: ● N75Ω type relay adapter. ● Body is nickel-plated brass. ● Jack-jack type. ● Can also be used to convert the mating part from plug to jack. ● Cannot be mated with 50Ω N type. Specifications: ● Connector shape: N75Ω connector ● Characteristic impedance: 75Ω Rated voltage AC: Operating frequency range: Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Phosphor bronze/gold plating External contact: Brass/nickel plating
