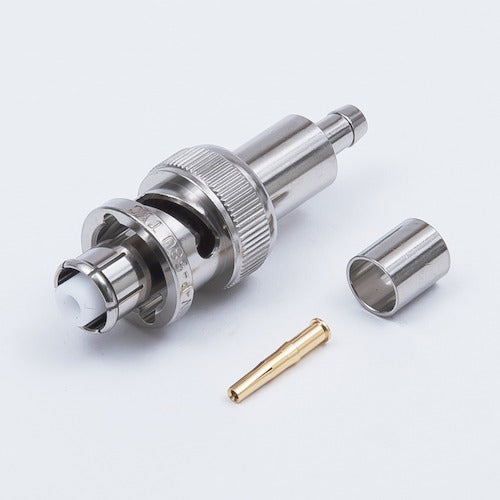

TYC SHV Connector Straight Plug SHVP-58/U 1 piece

Catalog number: SHVP-58/U Features: ● SHV connector straight plug. Applications: ● SHV straight plug compatible with RG-58/U and RG-58A/U cables. ● Both the center contact and the body are crimp type. ● Crimping tool TA-34 is required for installation. ● There is no regulation of characteristic impedance, and this connector is compatible with high voltages up to 3.5 kV. ● It uses a bayonet locking system, but is not compatible with BNC type or MHV connectors. Specifications: ● Connector shape: SHV connector ● Installation method: Center: Crimping / External: Crimping ● Compatible wires: RG-58/U RG-58A/U ● Characteristic impedance: Mismatched Rated voltage AC: AC 3500V Operating frequency range: Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 5000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: Crimping tool: TA-34 Material/Finish: ● Center contact: Phosphor bronze/gold plating/crimping External contact: Brass/nickel plating/crimping
