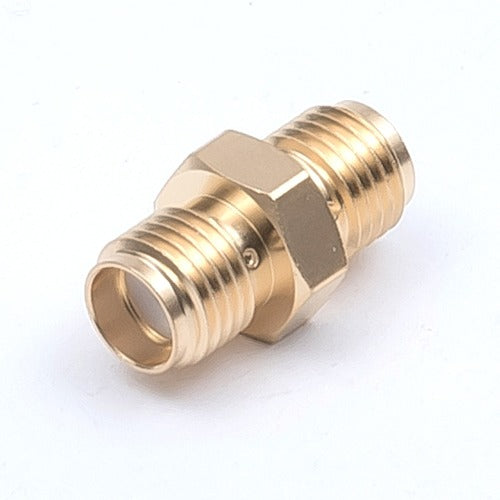

TYC SMA Connector Adapter SMA-A-JJ(AU) 1 piece

Catalog number: SMA-A-JJ(AU) Features: ● SMA connector adapter. Applications: ● SMA relay adapter. ● The body is gold-plated stainless steel, and is more durable than the SMA-A-JJ(Ni). ● Jack-jack type. ● Can also be used to convert the mating part from a plug to a jack. ● Similar names: SMAJ-SMAJ. Specifications: ● Connector shape: SMA connector ● Characteristic impedance: 50Ω Rated voltage AC: AC 330V Operating frequency range: 12.4GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.05+0.01F (100MHz to 12.4GHz) (F:GHz) Operating temperature range: -40 to +85℃ Material/Finish: ● Center contact: Beryllium copper/gold plating External contact: Stainless steel/gold plating
