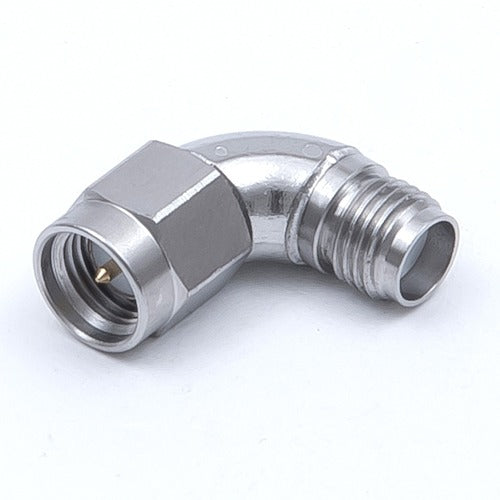

TYC SMA connector adapter SMA-RA-JP 1 piece

Catalog number: SMA-RA-JP Features: ● SMA connector adapter. Applications: ● Curved type SMA relay adapter. ● Stainless steel body with passivation treatment. ● Curved, not at a right angle, so loss is reduced compared to L-shaped (right angle) types. ● Plug-jack type. Specifications: ● Connector shape: SMA connector ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 18GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 2mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 18GHz) Operating temperature range: -65 to +165°C Material/Finish: ● Center contact: Beryllium copper/gold plating External contact: Stainless steel/passivation treatment
