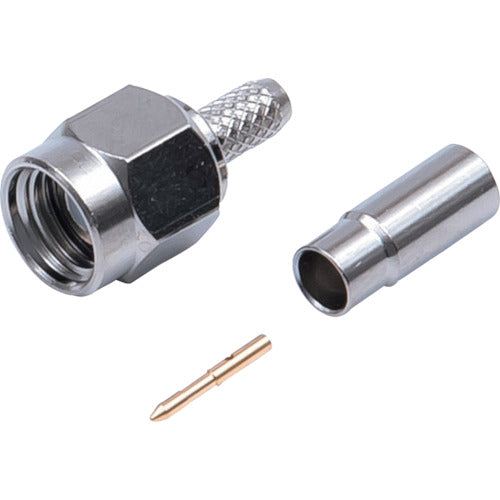

TYC SMA connector straight plug SMAP-1.5A 1 piece

Catalog number: SMAP-1.5A Features: ● SMA straight plug compatible with 1.5D-2V, 1.5D-QEV, EM-1.5D-2E cables. ● The main body is a crimp type, making it easy to process and inexpensive. ● The center contact is a solder type. ● Crimping tool TA-17 is required for installation. Specifications: ● Connector shape: SMA connector ● Installation method: Center: solder / External: crimping ● Compatible wire: 1.5D-2V / 1.5D-QEV / EM-1.5D-2E ● Characteristic impedance: 50Ω ● Rated voltage AC: AC 250V ● Operating frequency range: 6GHz ● Insulation resistance: 5000MΩ or more at DC 500V ● Withstand voltage: AC 750V for 1 minute ● Contact resistance: 3mΩ or less ● Voltage standing wave ratio: 1.2 or less (0.5 to 4GHz) ● Operating temperature range: -40 to +85℃ ● Crimping tool: TA-17 Material / Finish: ● Center contact: Brass, gold plated, soldered ● External contact: Brass, nickel plated, crimped
