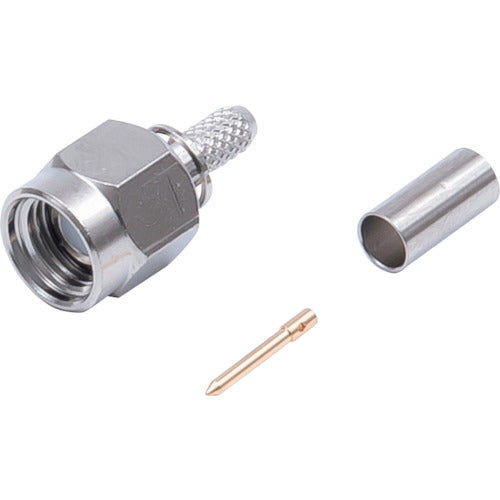

TYC SMA Connector Straight Plug SMAP-174(NI) 1 pc

Catalog number: SMAP-174(NI) Features: ●SMA straight plug compatible with 1.5D-2V, 1.5D-QEV, EM-1.5D-2E cables. ●The main body is a crimp type, making it easy to process and inexpensive. ●The center contact is a solder type. ●The crimping tool TA-17 is required for installation. Specifications: Connector shape: SMA connector; Installation method: Center: solder/External: crimp; Compatible wires: RG-174/U RG-188A/U RG-316/U; Characteristic impedance: 50Ω; Rated voltage AC: AC 250V; Operating frequency range: 6GHz; Insulation resistance: 5000MΩ or more at DC 500V; Withstand voltage: AC 750V for 1 minute; Contact resistance: 3mΩ or less; Voltage standing wave ratio: 1.2 or less (0.5 to 4GHz); Operating temperature range: -40 to +85°C; Crimping tool: TA-17; Material/Finish: Center contact: Brass, gold plated, soldered; External contact: Brass, nickel plated, crimped
