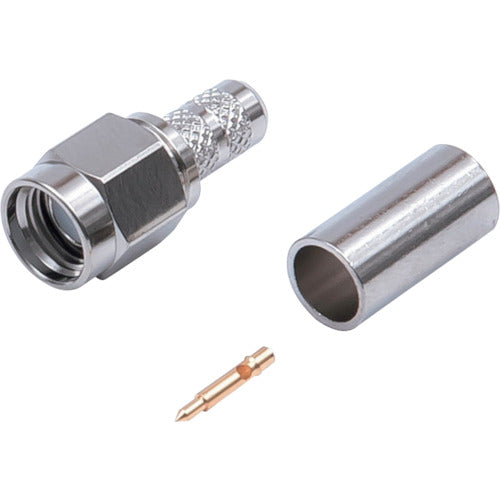

TYC SMA connector straight plug SMAP-58A-K 1 piece

Catalog number: SMAP-58A-K Features: ● Straight plug of SMA connector. Applications: ● SMA straight plug compatible with RG-58/U, RG-58A/U cables. ● The main body is a crimp type, making it easy to process and inexpensive. ● The center contact is a solder type. ● Crimping tool TA-34 or TA-35 is required for installation. Specifications: Connector shape: SMA connector Installation method: Center: solder/External: crimping Compatible wires: RG-58/U RG-58A/U Characteristic impedance: 50Ω Rated voltage AC: Operating frequency range: 3GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 750V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.3 or less (0.5 to 3GHz) Operating temperature range: -40 to +85°C Crimping tool: TA-34, TA-35 Material/Finish: Center contact: Brass/gold plated/soldering External contact: Brass/nickel plated/crimping
