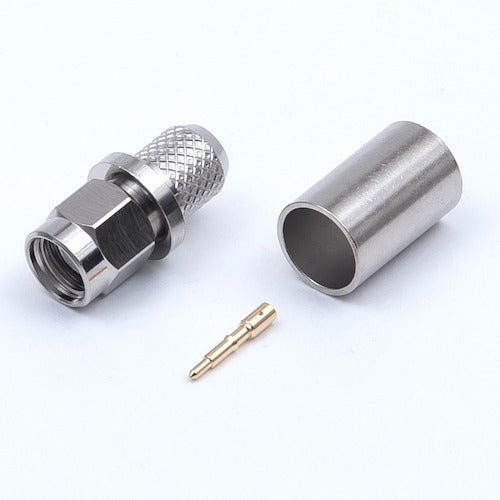

TYC SMA connector straight plug SMAP-5A 1 piece

Catalog number: SMAP-5A Features: ● Straight plug of SMA connector. Applications: ● SMA straight plug that fits 5D-2V cable. ● The main body is a crimp type, so it is easy to process and inexpensive. ● The center contact is a solder type. ● Crimping tool TA-35 is required for installation. Specifications: ● Connector shape: SMA connector ● Installation method: Center: solder / External: crimping ● Compatible wire: 5D-2V ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 750V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 4GHz), 1.3 or less (4GHz to 6GHz): (When using 5D-2V Fujikura) Operating temperature range: -40 to +85°C Crimping tool: TA-35 Material/Finish: ● Center contact: Brass / gold plated / soldered External contact: Brass / nickel plated / crimped
