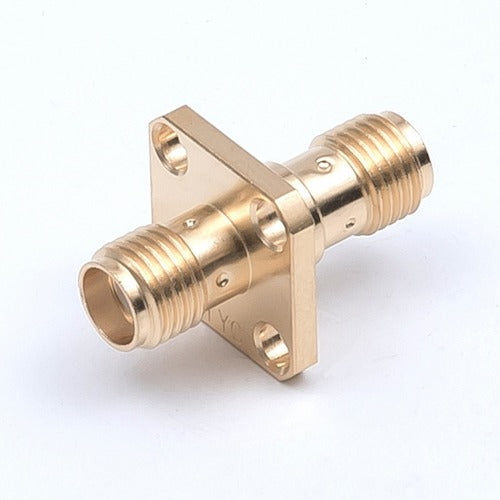

TYC SMA Connector Panel Adapter SMA-PA-JJ(AU) 1 piece

Catalog number: SMA-PA-JJ(AU) Features: ● Panel adapter for SMA connector. Applications: ● Panel-mount type SMA relay adapter. ● The body is gold-plated stainless steel, and is more durable than the SMA-PA-JJ(Ni). ● Jack-jack type. Specifications: ● Connector shape: SMA connector ● Characteristic impedance: 50Ω Rated voltage AC: AC 330V Operating frequency range: 18GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 4mΩ or less Voltage standing wave ratio: 1.05+0.01F (F:GHz) or less (DC to 18GHz) Operating temperature range: -40 to +85°C Material/Finish: ● Center contact: Beryllium copper/gold plating External contact: Stainless steel/gold plating
