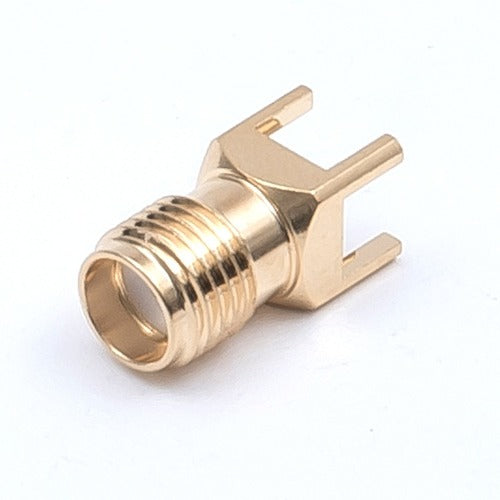

TYC SMA Connector Receptacle for Printed Circuit Boards SMA-R-PC(AU) 1 pc

Catalog number: SMA-R-PC(AU) Features: ●Receptacle for SMA connector printed circuit boards. Applications: ●Receptacle for SMA printed circuit boards. ●Body is gold-plated brass. ●Shape is straight type. ●Please refer to the drawing for detailed dimensions. Specifications: ●Connector shape: SMA connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 12.4GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 750V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 12.4GHz) Operating temperature range: -40 to +85℃ Material/Finish: ●Center contact: Beryllium copper/gold plated Outer contact: Brass/gold plated
