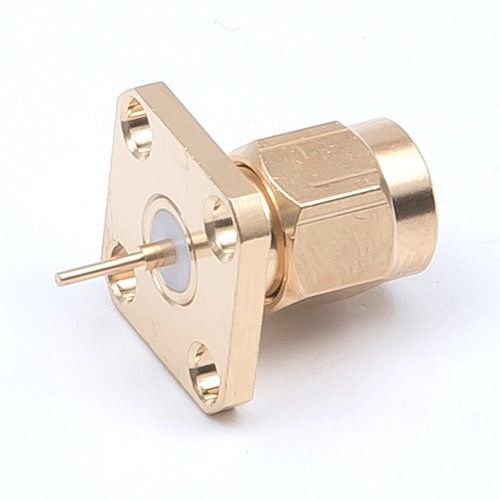

TYC SMA Connector Receptacle SMA-PR(AU) 1 piece

Catalog number: SMA-PR(AU) Features: ●SMA connector receptacle. Applications: ●Panel-mount type SMA plug receptacle. ●The mating part is in the shape of a plug. ●The body is gold-plated brass. ●The terminal shape is a round bar type. Specifications: ●Connector shape: SMA connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 12.4GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 12.4GHz) Operating temperature range: -40 to +85℃ Terminal shape: Round bar Material/Finish: ●Center contact: Brass/gold plated Outer contact: Brass/gold plated
