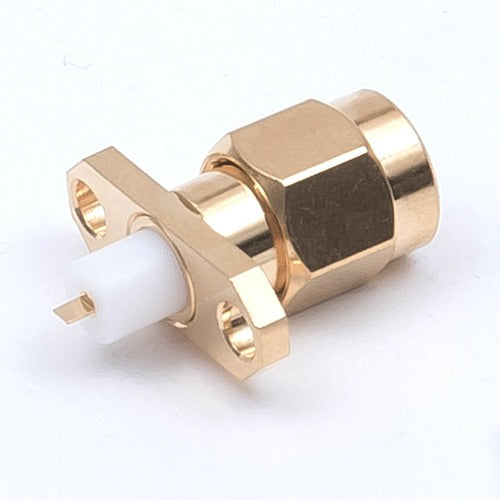

TYC SMA Connector Receptacle SMA-PRCT(AU) 1 piece

Catalog number: SMA-PRCT(AU) Features: ●SMA connector receptacle. Applications: ●Panel mounting type SMA plug receptacle. ●The mating part is in the shape of a plug. ●The body is gold plated brass. ●The terminal shape is a tab type. ●2-hole flange. Specifications: ●Connector shape: SMA connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 18GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 18GHz) Operating temperature range: -40 to +85℃ Terminal shape: Tab Material/Finish: ●Center contact: Beryllium copper/gold plated Outer contact: Brass/gold plated
