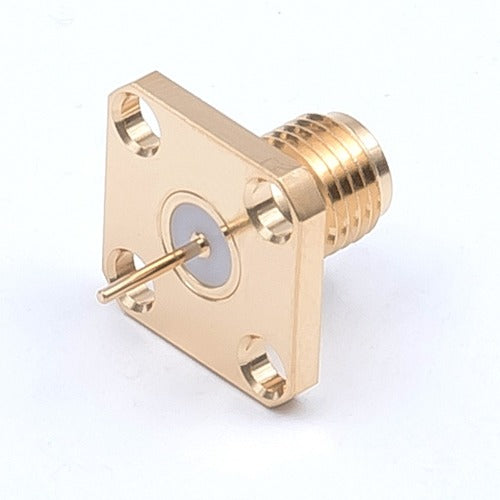

TYC SMA Connector Receptacle SMA-R(AU) 1 piece

Catalog number: SMA-R(AU) Features: ●SMA connector receptacle. Applications: ●Panel-mounted SMA receptacle. ●The body is gold-plated stainless steel, which is more durable than the SMA-R(Ni). ●The terminal shape is a round bar type. Specifications: ●Connector shape: SMA connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 335V Operating frequency range: 12.4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: 1.2 or less (DC to 8GHz) Operating temperature range: -40 to +85℃ Terminal shape: Round bar Material/Finish: ●Center contact: Beryllium copper/gold plating External contact: Stainless steel/gold plating
