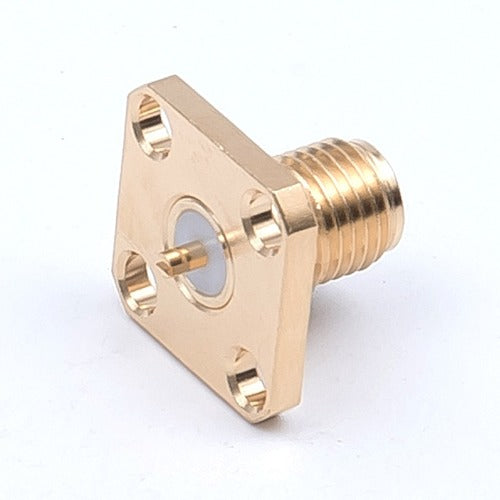

TYC SMA Connector Receptacle SMA-RSL(AU) 1 piece

TYC SMA Connector Receptacle SMA-RSL(AU) 1 piece

JAN： 　
connector Electrical and Electronic Components Electronics TYC Connector
¥1,637
¥1,637
Sale Sold out
Shipping calculated at checkout.
Catalog number: SMA-RSL(AU) Features: ●SMA connector receptacle. Applications: ●Panel mounting type SMA receptacle. ●Body is gold plated brass. ●Terminal shape is slit type. Specifications: ●Connector shape: SMA connector ●Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 18GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Terminal shape: Slit Material/Finish: ●Center contact: Beryllium copper/gold plated Outer contact: Brass/gold plated
