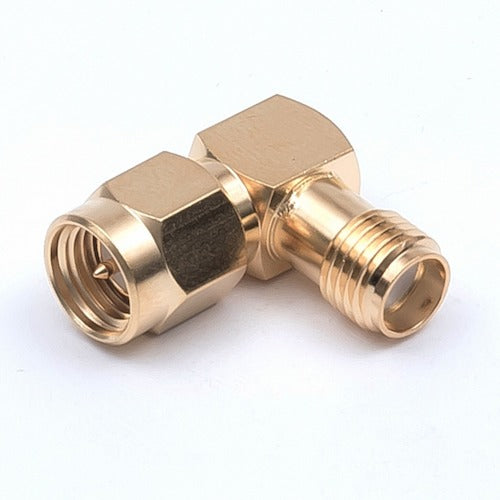

TYC SMA Connector L-Bend Adapter SMA-LA(AU) 1 piece

Catalog number: SMA-LA(AU) Features: ● L-shaped bent adapter for SMA connector. Applications: ● L-shaped (L-shaped, right angle) type SMA relay adapter. ● Stainless steel body with gold plating. ● Plug-jack type. Specifications: ● Connector shape: SMA connector ● Characteristic impedance: 50Ω Rated voltage AC: AC 330V Operating frequency range: 12.4GHz Insulation resistance: 5000MΩ or more at DC 500V Withstand voltage: AC 1000V for 1 minute Contact resistance: Voltage standing wave ratio: 1.2 or less (0.1 to 12.4GHz) Operating temperature range: -40 to +85℃ Material/Finish: ● Center contact: Beryllium copper, brass/gold plating External contact: Stainless steel/gold plating
