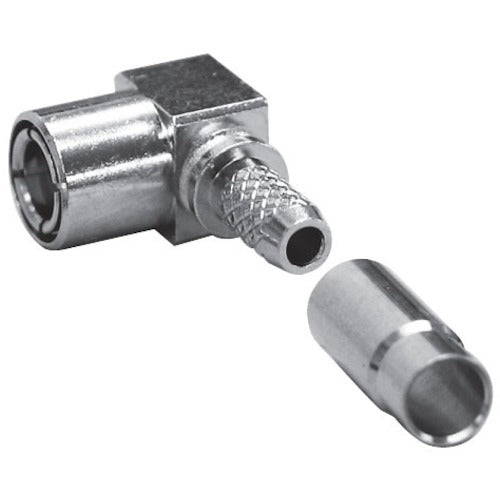

TYC SMB Connector L-Bent Plug SMB-LP-1.5T 1 pc

Catalog number: SMB-LP-1.5T Features: ● L-shaped bent plug of SMB connector. Applications: ● SMB L-shaped (L-shaped, right angle) plug compatible with 1.5D-2V, 1.5D-QEV, EM-1.5D-2E cables. ● Lower profile than SMB-LP-1.5A, allowing for more space-saving connection. ● The main body is a crimp type, making it easy to process and inexpensive. ● The center contact is a solder type. ● Crimping tool TA-17 is required for installation. Specifications: Connector type: SMB connector Installation method: Center: solder/External: crimping Compatible wires: 1.5D-2V/1.5D-QEV/EM-1.5D-2E Characteristic impedance: 50Ω Rated voltage AC: Operating frequency range: 1GHz Insulation resistance: 500MΩ or more at DC 500V Withstand voltage: AC 500V for 1 minute Contact resistance: 10mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85°C Crimping tool: TA-17 Material/Finish: Center contact: Beryllium copper/gold plating/soldering External contact: Brass/nickel plating/crimping
