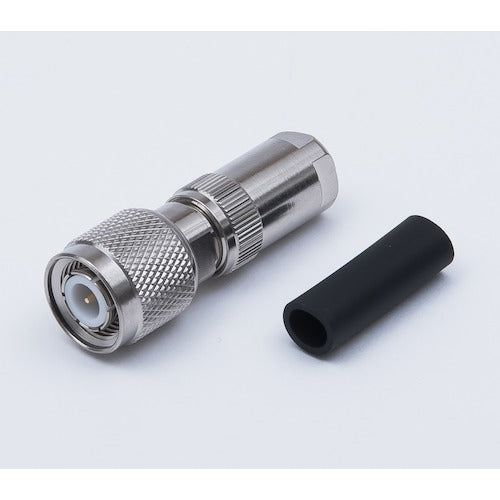

TYC TNC Connector Straight Plug TNCP-117 1 pc

Catalog number: TNCP-117 Features: ● Straight plug of TNC connector. Applications: ● TNC type straight plug compatible with 3D-2V, 5D-2V, 5C-2V, S-5C-FB cables, etc. ● A feature is that it is compatible with a wide range of cables, but compared to other connectors that are compatible with each cable, the characteristics are slightly inferior. ● Both the center contact and the main body are solder types. Specifications: ●Connector shape: TNC connector ●Installation method: Center: solder / External: solder + tightening ●Compatible wire: 3D-2V/3C-2V/5D-2V/5C-2V/5C-FB/S-5C-FB/EM-3D-2E/EM-3C-2E/EM-5D-2E/EM-5C-2E/EM-5C-FB/EM-S-5C-FB ●Characteristic impedance: 50Ω Rated voltage AC: Operating frequency range: Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85℃ Material/Finish: ●Center contact: Brass/gold plated/soldered External contact: Brass/nickel plated/soldered + tightening
