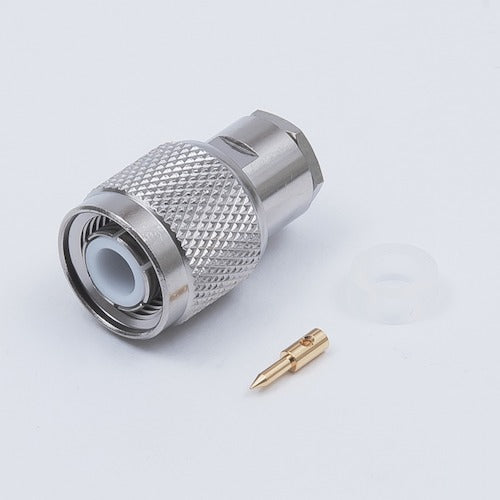

TYC TNC Connector Straight Plug TNCP-58/U 1 piece

Catalog number: TNCP-58/U Features: ● Straight plug of TNC connector. Applications: ● TNC type straight plug compatible with RG-58/U and RG-58A/U cables. ● The main body is a clamping type, and the connection is highly robust. ● The center contact is a solder type. Specifications: ● Connector shape: TNC connector ● Installation method: Center: solder / External: clamping ● Compatible wire: RG-58/U / RG-58A/U ● Characteristic impedance: 50Ω Rated voltage AC: AC 500V Operating frequency range: 4GHz Insulation resistance: 1000MΩ or more at DC 500V Withstand voltage: AC 1500V for 1 minute Contact resistance: 3mΩ or less Voltage standing wave ratio: Operating temperature range: -40 to +85℃ Material / Finish: ● Center contact: Brass / gold plating / soldering External contact: Brass / nickel plating / clamping
