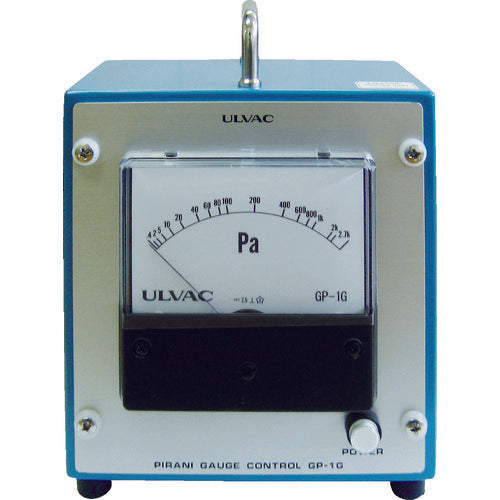

ULVAC Pirani vacuum gauge (analog specification) GP-1G with case/WP-01 GP1G-B/WP01 1 S

Catalogue number: GP1G-B/WP01 Features: ● Vacuum gauge in a convenient carrying case. ● Constant temperature Pirani vacuum gauge that uses the thermal conduction of gas. ● Capable of measuring low vacuum range (0.4 to 2700 Pa). ● Durable platinum is used for the filament. ● The gauge head is compatible. ● JCSS calibration is also possible. Applications: ● For low vacuum measurement of inspection and experimental equipment at universities and research institutes. ● For low vacuum measurement of analytical equipment and physicochemical equipment. Specifications: ● Measurement pressure range (Pa): 0.4 to 2700 ● Sensor: WP01 ● Mating flange: φ18 ● Power supply voltage (V): AC100-240V/10VA ● Recorder output: 0-1mV/non-linear output ● Display: Comes with analog case ● JCSS calibration possible ● Set point: None ● Power supply voltage: AC100-240V/10VA ● External dimensions: 150 x 134 x 201mm (display) Material/Finish: ● Sensor filament - platinum (Pt) Set contents/Accessories: ● Sensor ● Sensor cable 5m ● Detection unit GP-H Note: ● If you wish to export this product outside of Japan, please notify us in advance and be sure to follow the procedures for export control in accordance with the Foreign Exchange and Foreign Trade Control Law and other export control regulations.
