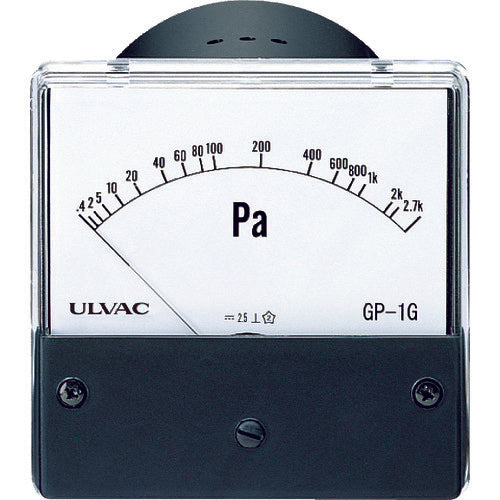

ULVAC Pirani Vacuum Gauge (Analog) GP-1G/WP-01 GP1G/WP01 1 S

Catalogue number: GP1G/WP01 Features: ●Excellent cost performance. ●Constant temperature Pirani vacuum gauge that uses the thermal conduction of gas. ●Can measure in the low vacuum range (0.4 to 2700 Pa). ●Durable platinum is used for the filament. ●The probes are compatible. ●JCSS calibration is also possible. Applications: ●For low vacuum measurement of inspection and experimental equipment at universities and research institutes. ●For low vacuum measurement of analytical equipment and physical and chemical equipment. Specifications: ● Measuring pressure range (Pa): 0.4 to 2700 ● Sensor: WP01 ● Mating flange: φ18 ● Power supply voltage (V): AC100-240V/10VA ● Recorder output: 0-10mV/non-linear output ● Display: Analog ● Set point: None ● Power supply voltage: AC100-240V/10VA ● External dimensions: 100 x 130 x 100mm (display) Material/Finish: ● Sensor filament - platinum (Pt) Set contents/Accessories: ● Sensor ● Sensor cable 5m ● Detection unit GP-H Note: ● If you wish to export this product outside of Japan, please notify us in advance and be sure to follow the procedures for export control in accordance with the Foreign Exchange and Foreign Trade Control Law and other export control regulations.
