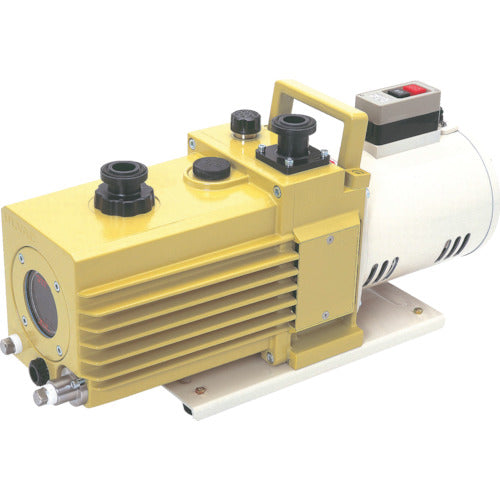

ULVAC Three-phase 200V Oil rotary vacuum pump GCD-201X 1 unit

Catalog number: GCD-201X Features: ● Chemical type vacuum pump with surface treatment on the gas contact surface. ● Pump with increased durability, ideal for vacuuming special gases and solvents used in the chemical and semiconductor industries. Applications: ● Chemical equipment such as concentrators. ● Semiconductor manufacturing equipment. ● Pharmaceutical machinery. ● Drying after chemical processing. ● Vacuum dryers, linked dryers Specifications: ● Exhaust speed (L/min) 50/60Hz: 200/240 ● Ultimate pressure (Pa): 0.67 ● Intake port diameter (mm): KF-25 ● Power supply (V): Three-phase 200 ● Overall width (mm): 170.0 ● Overall length (mm): 509.5 ● Overall height (mm): 241.1 ● Thermal protector included: Yes ● Oil used: SO-M ● Power cord length (m): None ● Two-stage exhaust system ● Can be customized to accommodate different voltages from one unit ● Chemical type Caution: ● Use synthetic oil (SO-M) for the vacuum pump oil. ●Please consult us in advance if you plan to aspirate special gases, solutions, etc. ●Not suitable for continuous operation near atmospheric pressure. ●When selecting optional parts if you plan to aspirate corrosive gases, please check the material and corrosion resistance.
