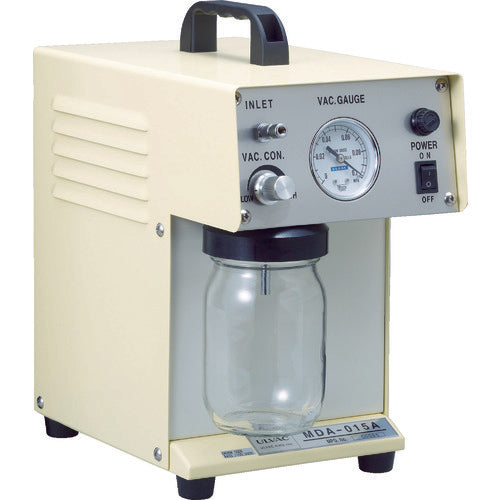

ULVAC Single Phase 100V Portable Aspirator MDA-015A 1 unit

Catalogue number: MDA-015A Features: *Compact and easy to carry. *An aspirator that does not use water. *Always provides stable suction power. *The desired pressure can be set while checking the vacuum gauge. *Equipped with an outlet for aspirated gas, making it easy to pipe to the outside air or a duct. Applications: *Rotary evaporator. *Centrifugal evaporator. *Vacuum filtration. Specifications: ●Exhaust speed (L/min) 50/60Hz: 12/15 ●Intake port diameter (mm): outer diameter φ9 ●Power supply (V): single phase 100 ●Width (mm): 178 ●Depth (mm): 300 ●Height (mm): 311 ●Attained pressure (kPa): 6.6 ●Power cord length (m): 1.8 ●Power consumption (W) (50/60Hz): 39/43 ●Collection bottle: 450ml ●Built-in vacuum pump: diaphragm type dry vacuum pump DA-15D (special) ●Pressure adjustment: needle valve ●Vacuum gauge: Bourdon tube vacuum gauge ●Power cord length: 1.8m Material/Finish: ●NBR and others
