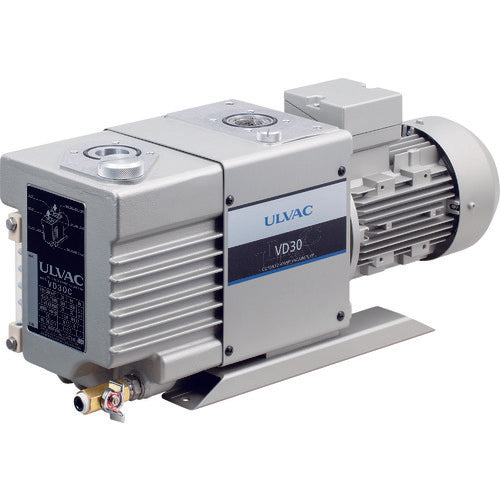

ULVAC Oil Rotary Vacuum Pump VD30C VD30C 1 unit

Catalogue number: VD30C Features: ●Uses ULVAC's original high-efficiency (IE3) multi-voltage motor. ●A highly reliable oil rotary vacuum pump with low vibration and noise. ●Uses a forced oil supply system that prevents the exhaust speed from decreasing even at near atmospheric pressure. ●A rotary vane pump with excellent maintainability. Applications: ●Vacuum film formation equipment for deposition and sputtering. ●Analytical equipment, leak test equipment. ●Various vacuum equipment for vacuum drying, gas replacement, etc. Specifications: ●Exhaust speed (L/min) 50/60Hz: 500/600 ●Arrival pressure (Pa): 0.67 ●Power supply (V): Three-phase multi ●Overall width (mm): 210 ●Overall length (mm): 660 ●Overall height (mm): 324 ●Oil used: R-72 ●Power cord length (m): None ●Inlet diameter: Equivalent to VG40 ●Totally enclosed external fan three-phase multi-voltage motor 50Hz: 200-240/380-415V compatible, 60Hz: 200-240/380-460V compatible ●No thermal protector ●Exhaust port: Equivalent to VG40 ●Two-stage vane type Material/Finish: ●Cylinder: Cast iron ●Pump case: Cast aluminum Note: ●Oil mist trap is not included with VD pump. ●We recommend purchasing an oil mist trap. ●The product is shipped with a △ wiring for 200V class. ●If you wish to export this product outside of Japan, please contact us as procedures are required.
