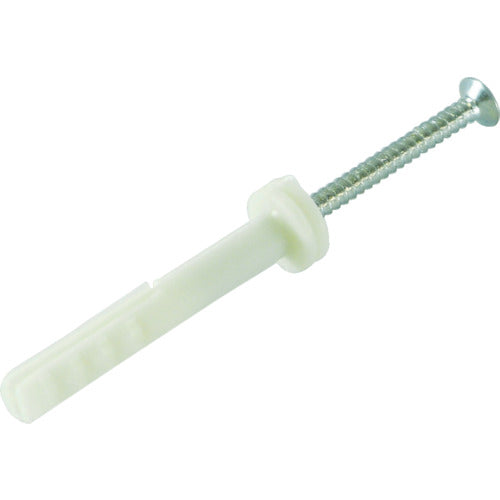

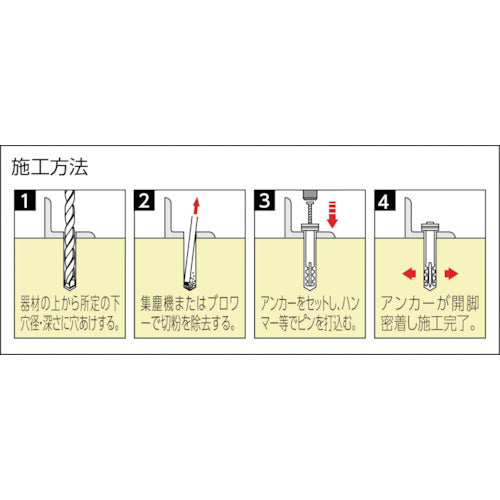

Catalog number: NP-535 Features: ●Simple work, just drive in the pin. ●No wood screws or plugs are required, and they can be removed. ●The main body is made of nylon, so there is no need to worry about rust. Applications: ●Installation of distribution boards, saddle bands, lighting fixtures, etc., installation of caps, signs, etc. Specifications: ●Outer diameter (mm): 5 ●Length (mm): 35 ●Maximum thickness of object to be installed (mm): 15 ●Drilling depth (mm): 35 ●Maximum tensile load (kN): 1.1 ●Pilot hole diameter (mm): 5.0 ●Head shape: Flat ●Boxed Material/Finish: ●Main body: Nylon ●Screw: Steel Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/m［［Ｍ２］］.
