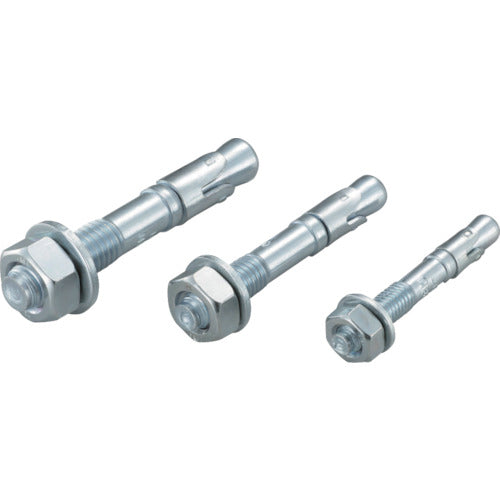

UNIKA Big One BG-1080 BG-1080 30 pieces

Catalogue number: BG-1080 Features: ● Installation by torque management and a large three-sided wedge provide reliable strength. ● Since the screw diameter and pilot hole diameter are the same, installation can be done from above the object to be attached. Applications: ● Electrical installation and piping work, heating and cooling duct work, elevator work, handrail installation, etc. Specifications: ● Pilot hole diameter (mm): 10.0 ● Total length (mm): 80 ● Screw length (mm): 36.5 ● Maximum thickness (mm): 13 ● Minimum embedment depth: 52 mm ● Screw diameter: M10 ● Pilot hole depth: 60 mm or more ● Tightening torque (m): 30 N ・ Material / Finish: ● Steel
