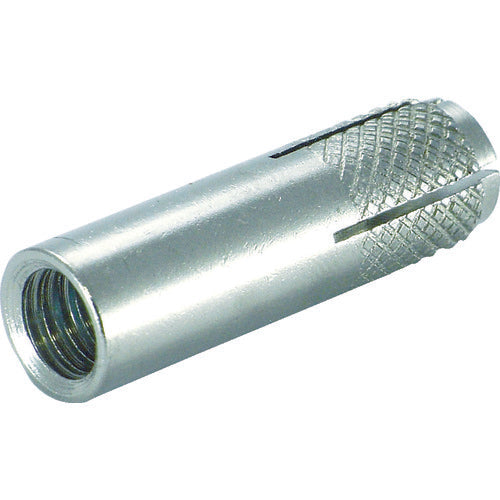

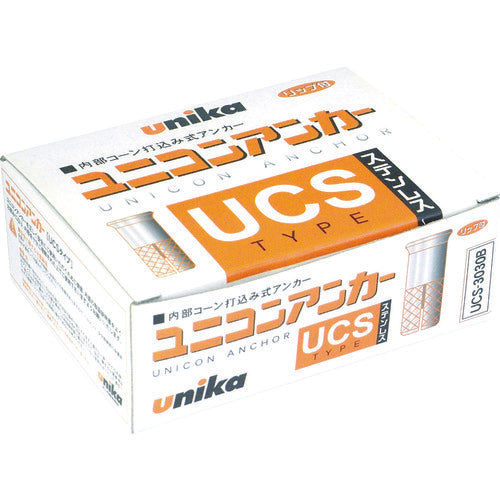

UNIKA Unicon Anchor Stainless Steel UCS-3040 UCS-3040 50 Pieces

Catalog number: UCS-3040 Features: ●The outer diameter of the collar is smaller than the diameter of the female thread, so the pilot hole diameter is small, improving workability and making upward construction easy. ●An internal cone is used to prevent the cone from being lost during work or coming off after construction. Applications: ●Electrical installation work, piping work, heating and cooling duct work, etc. Specifications: ●Thread size: W3/8 ●Outer diameter (mm): 12.0 ●Total length (mm): 40 ●Thread length (mm): 15 ●Drill diameter (mm): 12.5 ●Maximum tensile load (kN): 17.2 ●Boxed Material/Finish: ●Stainless steel Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/[MM2].
