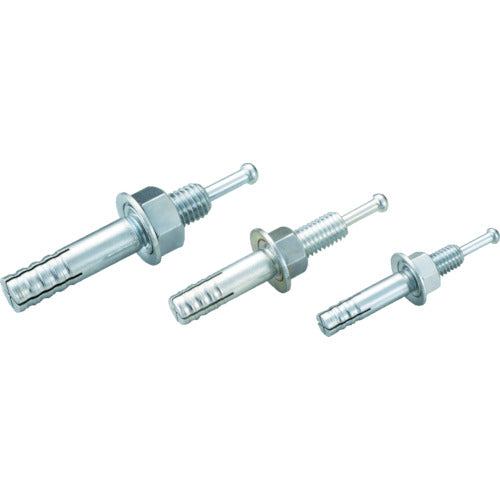

Catalogue number: C-1610 Features: ●Simple work of just hammering in the pins ensures reliable installation. ●Just by looking at the pins, you can be sure that the pins have been hammered in completely. Applications: ●Architectural, electrical, sanitation, heating and cooling construction, sign and chair installation, machine installation, etc. Specifications: ●Screw size: M16 ●Total length (mm): 100 ●Screw length (mm): 40 ●Maximum thickness of object to be attached (mm): 18 ●Pre-drilled hole diameter (mm): 17.0 ●Maximum tensile load (kN): 40.5 ●Embedding depth (mm): 60 ●Boxed Material/Finish: ●Steel ●Surface treatment: Trivalent chromate finish Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/[MM2].
