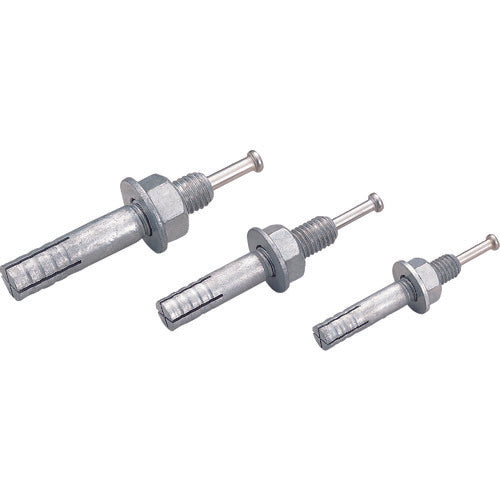

UNIKA Rooty Anchor C Type (Hot-dip Galvanized) C-1210D C-1210D 30 Pieces

Catalog number: C-1210D Features: ●Simple work of just driving in the pins ensures reliable installation. ●Just by looking at the pins, you can be sure that the pins have been driven in completely. ●Hot-dip galvanized for excellent corrosion resistance. Applications: ●Architectural, electrical, sanitary, heating and cooling construction, sign and chair installation, machine installation, etc. Specifications: ●Screw size: M12 ●Total length (mm): 100 ●Screw length (mm): 30 ●Maximum thickness of object to be attached (mm): 38 ●Drill hole diameter (mm): 12.7 ●Maximum tensile load (kN): 21.5 ●Embedding depth (mm): 45 ●Standard installation torque (N・m): 42 ●Two-sided width dimension (mm): 19 ●Drilling depth (mm): 52 or more ●Boxed Material/Finish: ●Steel (Core rod: Stainless steel) ●Surface treatment: Hot-dip galvanized (Core rod: Stainless steel) Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/［［MM2］］.
