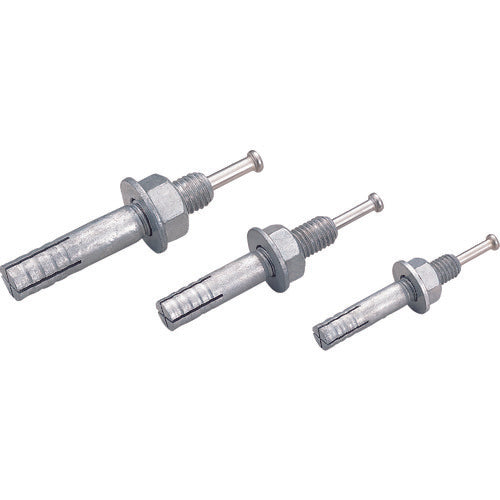

UNIKA Rooty Anchor C Type (Hot-dip Galvanized) C-870D C-870D 50 Pieces

Catalog number: C-870D Features: ●Simple work of just driving in the pins ensures reliable installation. ●Just by looking at the pins, you can be sure that the pins have been driven in completely. ●Hot-dip galvanized for excellent corrosion resistance. Applications: ●Architectural, electrical, sanitation, air conditioning and heating construction, sign and chair installation, machine installation, etc. Specifications: ●Screw size: M8 ●Total length (mm): 70 ●Screw length (mm): 25 ●Maximum thickness of object to be attached (mm): 25 ●Drill hole diameter (mm): 8.5 ●Maximum tensile load (kN): 10.6 ●Embedding depth (mm): 35 ●Standard installation torque (N・m): 12 ●Drilling depth (mm): 40 or more ●Two-sided width dimension (mm): 13 ●Boxed Material/Finish: ●Steel (Core rod: Stainless steel) ●Surface treatment: Hot-dip galvanized (Core rod: Stainless steel) Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/［［MM2］］.
