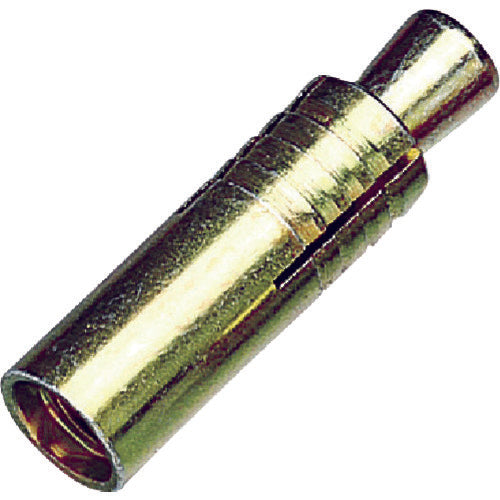

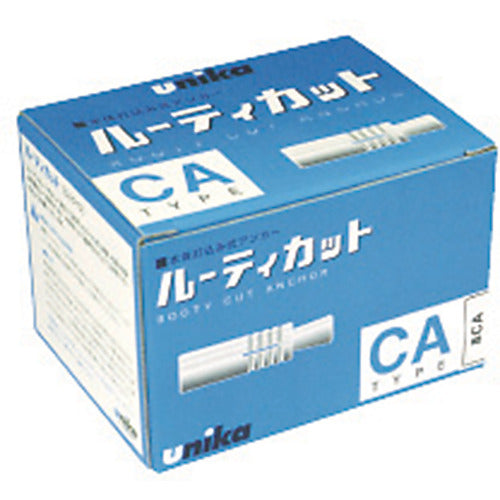

UNIKA Rooty Cut Anchor CA Type 12CA 12CA 50 Pieces

Catalogue number: 12CA Features: ●No protrusions on the concrete surface after application, allowing the application of hexagonal bolts, reinforcing bars, and hanging bolts. Applications: ●For concrete. ●Air conditioning work, sign installation work, interior and exterior work, electrical installation work, piping work, etc. Specifications: ●Screw designation: M12 ●Outer diameter (mm): 17.5 ●Total length (mm): 50 ●Screw length (mm): 22 ●Drill diameter (mm): 18.0 ●Maximum tensile load (kN): 32.9 ●Boxed Material/Finish: ●Steel Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/[MM2].
