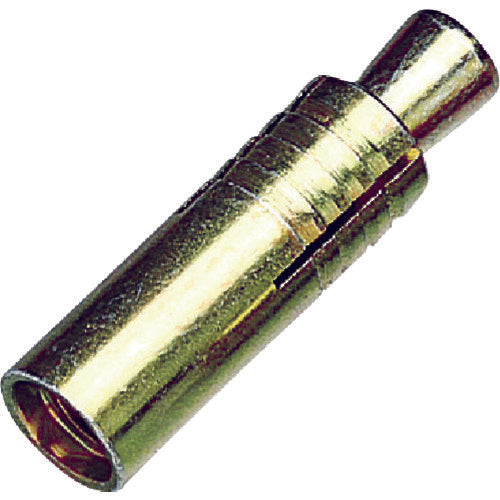

UNIKA Rooty Cut Anchor CA Type 38CA 38CA 100 Pieces

Catalogue number: 38CA Features: ●No protrusions on the concrete surface after application, allowing the application of hexagonal bolts, reinforcing bars, and hanging bolts. Applications: ●For concrete. ●Air conditioning work, sign installation work, interior and exterior work, electrical installation work, piping work, etc. Specifications: ●Screw size: W3/8 ●Outer diameter (mm): 14.0 ●Total length (mm): 40 ●Screw length (mm): 14 ●Drill diameter (mm): 14.5 ●Maximum tensile load (kN): 24.3 ●Boxed Material/Finish: ●Steel Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/[MM2].
