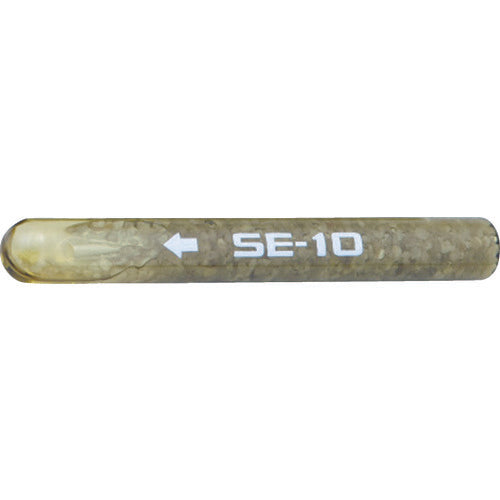

UNIKA Resin A SE type (sealed capsule type) SE-10 SE-10 1 bottle

Catalogue number: SE-10 Features: *An adhesive anchor with excellent earthquake resistance. *Suitable for application to wet base materials. *Uses highly alkali-resistant vinyl ester resin, allowing for long-term storage before application. Applications: *Foundation work for steel frames, etc. *Road construction. *Tunnel construction. *Installation work for vibrating machinery, etc. Specifications: ●Outer diameter (mm): 10.8 ●Total length (mm): 90 ●Capacity (cm3): 6.6 ●Capacity (ml): 6.6 ●Bolt used (irregular steel bar): M10, W3/8 (D10) ●Drill diameter (irregular steel bar) (mm): 12.0 (13.0) ●Drilling depth (mm): 90 ●Maximum tensile load (kN): 46.1 ●Long-term allowable tensile load (kN): 6.2 ●Short-term allowable tensile load (kN): 12.5 ●Rotational/impact type Material/Finish: ●Main agent: Vinyl ester resin Note: ●The maximum tensile load is the value for bolts (excluding irregular shapes) when the concrete strength FC = 21N/mm2.
