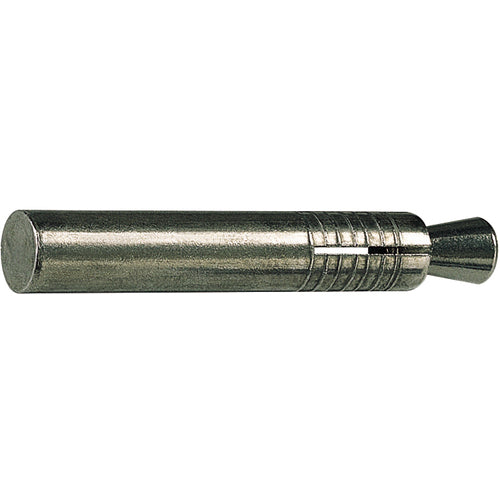

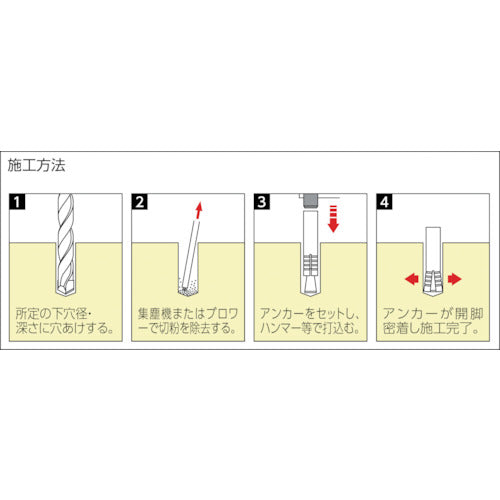

Catalogue number: AS-1045 Features: ● A welding anchor that is hammered into the target object and attached by directly welding the hardware of the equipment. ● Ideal for fastening sash window frames. Applications: ● For fastening sash window frames. ● Body is driven in. Specifications: ● Outer diameter (mm): 10 ● Overall length (mm): 45 ● Drill diameter (mm): 10.5 ● Embedded depth (mm): 30 ● Maximum tensile load (kN): 13.5 ● Pilot hole diameter (mm): 10.5 ● Drilling depth (mm): 32 ● Boxed Material/Finish: ● Steel Note: ● The maximum tensile load is the value when the concrete compressive strength is 21N/[MM2].
